Order of Rotational Symmetry

Definition of Order of Rotational Symmetry:

The number of times a figure fits into itself in one complete rotation is called the order of rotational symmetry.

If A° is the smallest angle by which a figure is rotated so that rotated from fits onto the original form, then the order of rotational symmetry is given by \(\frac{360°}{A°}\), [A° < 180°]

Order of rotational symmetry = \(\frac{360}{\textrm{Angle of Rotation}}\)

A figure has a rotational symmetry of order 1, if it can come to its original position after full rotation or 360°.

Examples of Order of Rotational Symmetry:

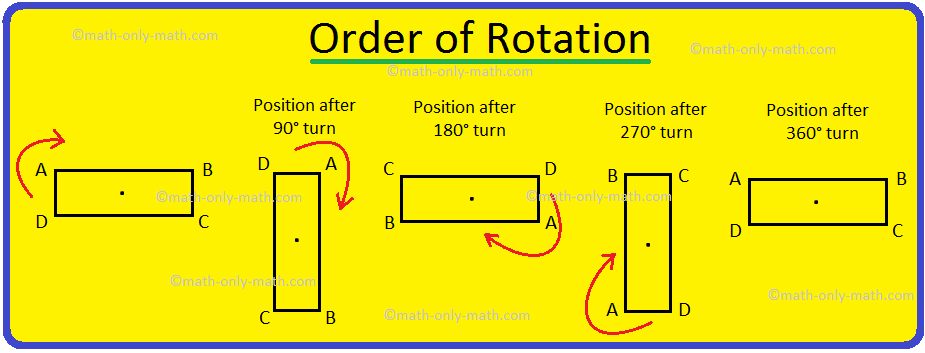

Rectangle (clockwise)

Order of Rotation

We observe that while rotating the figure through 360°, it attains original from two times i.e., it looks exactly the same at two positions. Thus, we say that the rectangle has a rotational symmetry of order 2.

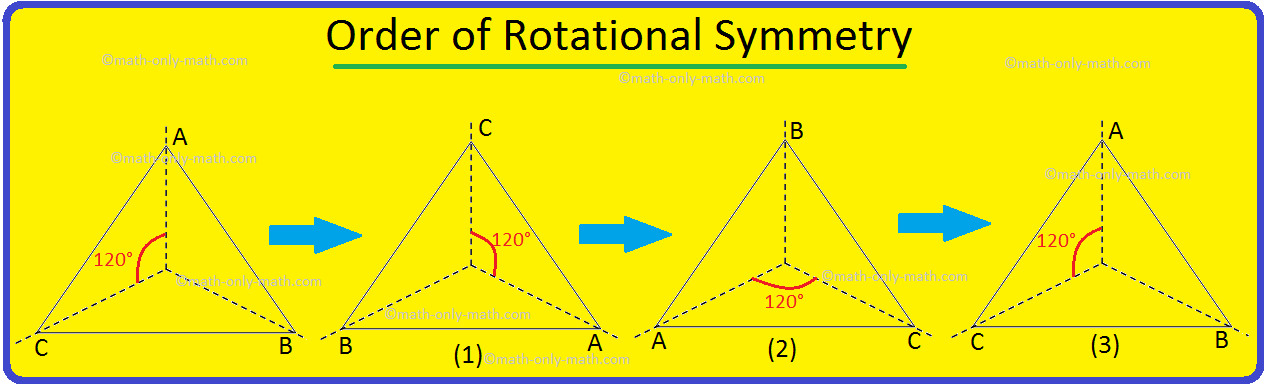

Equilateral triangle (clockwise):

Order of Rotational Symmetry

We observe that at all 3 positions, the triangle looks exactly the same when rotated about its center by 120°.

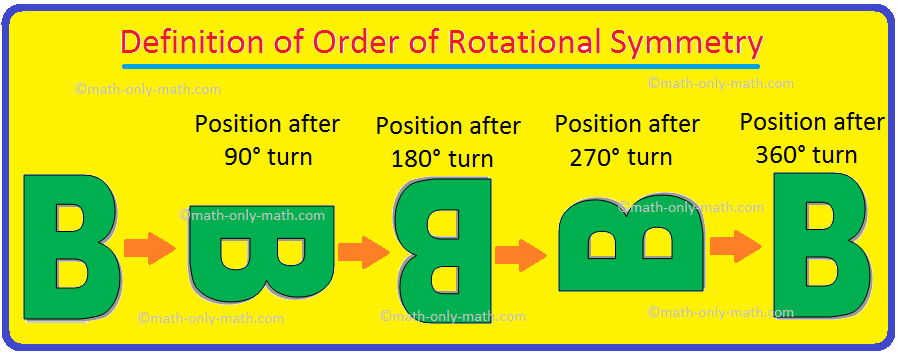

Letter B (clockwise):

Definition of Order of Rotational Symmetry

We observe that only at one position the letter looks exactly the same after taking one complete rotation.

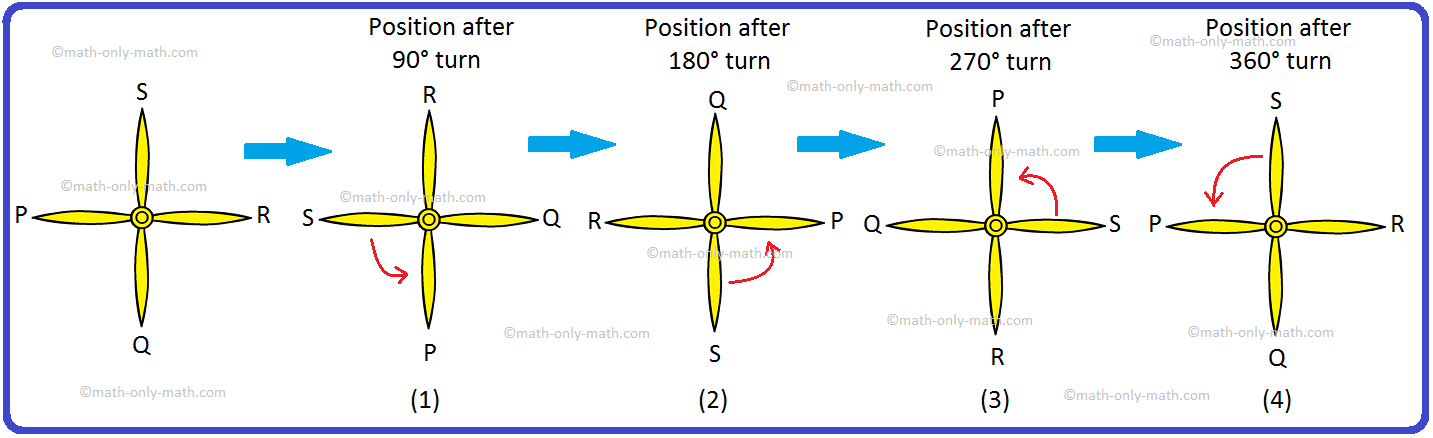

Windmill (anticlockwise):

anticlockwise

We observe that if we rotate it by one – quarter, at 4 positions, it looks exactly the same. Therefore, the order of rotational symmetry is 4.



Solved Examples on Order of Rotational Symmetry:

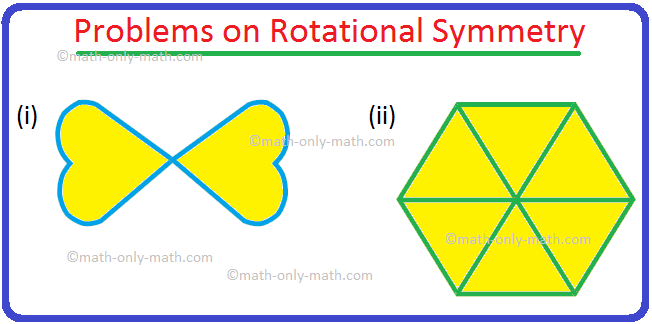

1. Find the order of rotational symmetry of the following shapes about the point marked.

Problems on Rotational Symmetry

Solution:

(i)

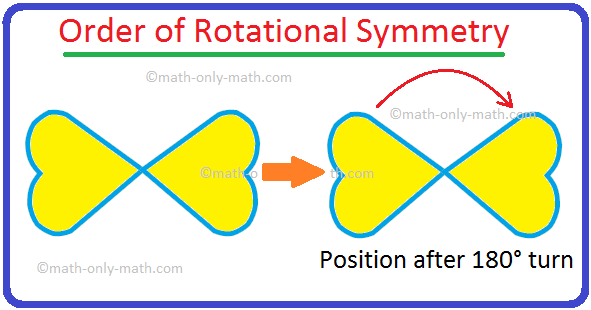

Problems on Order of Rotational Symmetry

Order of rotational symmetry = \(\frac{360}{180}\) = 2


(ii)

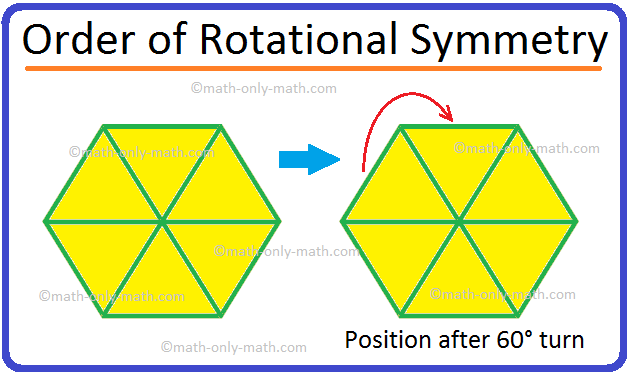

Rotational Symmetry Problems

Order of rotational symmetry = \(\frac{360}{60}\) = 6

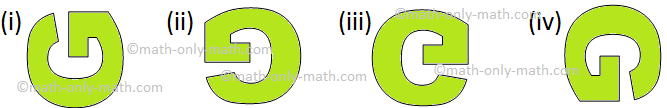

2. The figure obtained by giving 2 anticlockwise right-angle turns to letter G is:

2 Anticlockwise Right-angle Turns

Answer: (ii)
