180 Degree Rotation

Learn about the rules for 180 degree rotation in anticlockwise or clockwise direction about the origin.


How do you rotate a figure 180 degrees in anticlockwise or clockwise direction on a graph?

Rotation of a point through 180°, about the origin when a point M (h, k) is rotated about the origin O through 180° in anticlockwise or clockwise direction, it takes the new position M' (-h, -k).


Worked-out examples on 180 degree rotation about the origin:

1. Find the co-ordinates of the points obtained on rotating the points given below through 180° about the origin.

(i) A (3, 5)

(ii) B (-2, 7)

(iii) C (-5, -8)

(iv) D (9, -4)

Solution:

When rotated through 180° anticlockwise or clockwise about the origin, the new position of the above points is.

(i) The new position of the point A (3, 5) will be A' (-3, -5)

(ii) The new position of the point B (-2, 7) will be B' (2, -7)

(iii) The new position of the point C (-5, -8) will be C' (5, 8)

(iv) The new position of the point D (9, -4) will be D' (-9, 4)

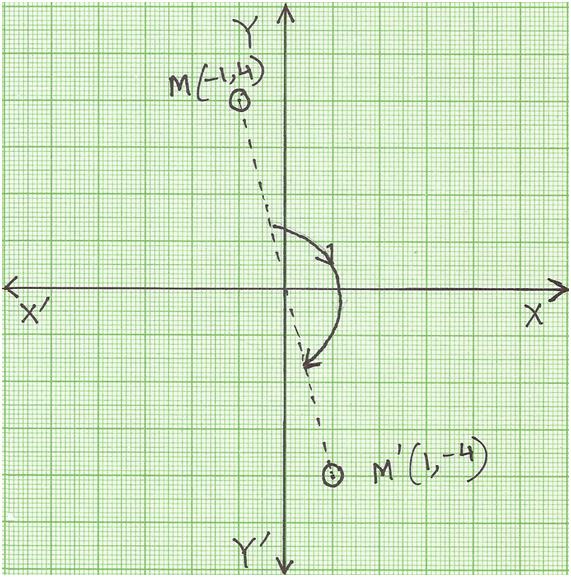

2. Plot the point M (-1, 4) on the graph paper and rotate it through 180° in the anticlockwise direction about the origin O. Find the new position of M.

Solution:

180 Degree Rotation

When rotated through 180° in the anticlockwise direction about the origin O, then M (-1, 4) → M'' (1, -4).

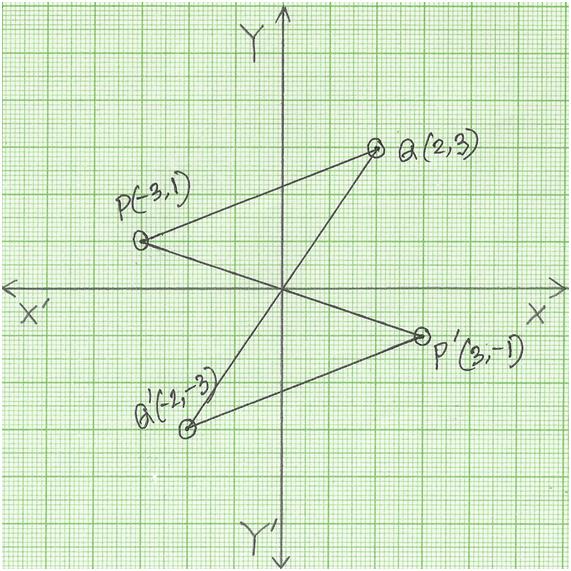

3. Draw a line segment joining the point P (-3, 1) and Q (2, 3) on the graph paper and rotate it through 180° about the origin in anticlockwise direction.

Solution:

180 Degree Rotation about the Origin

On plotting the points P (-3, 1) and Q (2, 3) on the graph paper to get the line segment PQ.

Now rotate PQ through 180° about the origin O in anticlockwise direction, the new position of points P and Q is:

P (-3, 1) → P' (3, -1)

Q (2, 3) → Q' (-2, -3)

Thus, the new position of line segment PQ is P'Q'.

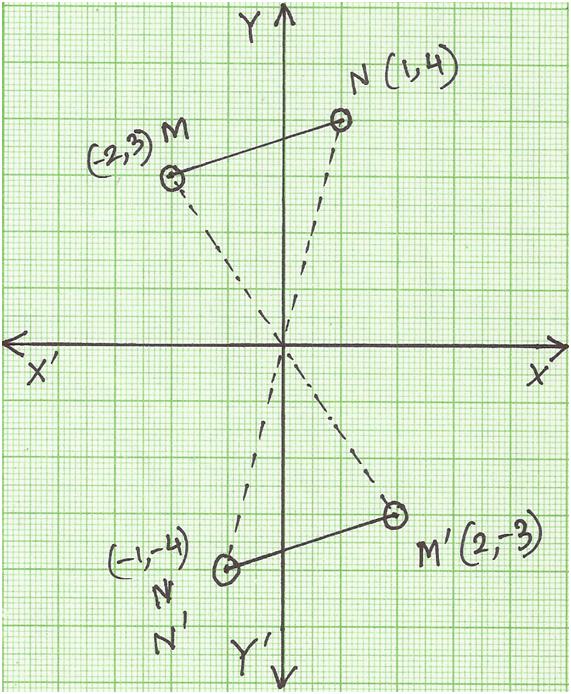

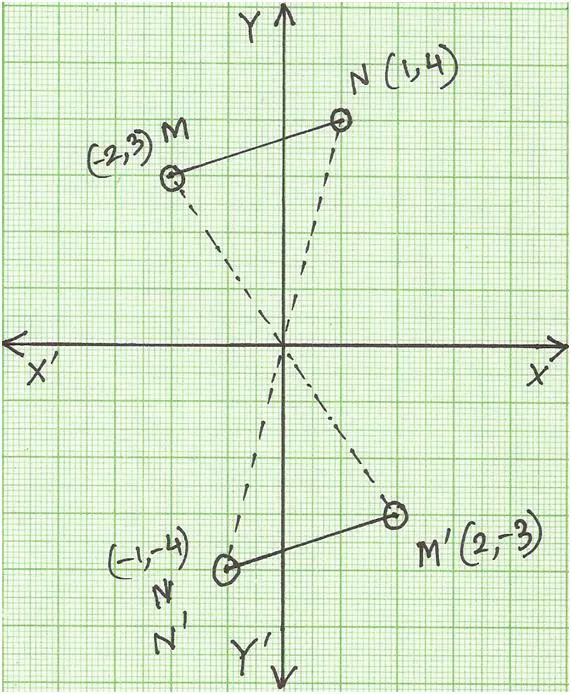

4. Draw a line segment MN joining the point M (-2, 3) and N (1, 4) on the graph paper. Rotate it through 180° in anticlockwise direction.

Solution:

Rotate a Figure 180 Degrees

On plotting the points M (-2, 3) and N (1, 4) on the graph paper to get the line segment MN.

Now, rotating MN through 180° about the origin O in anticlockwise direction, the new position of points M and N is:

M (-2, 3) → M' (2, -3)

N (1, 4) → N' (-1, -4)

Thus, the new position of line segment MN is M'N'.

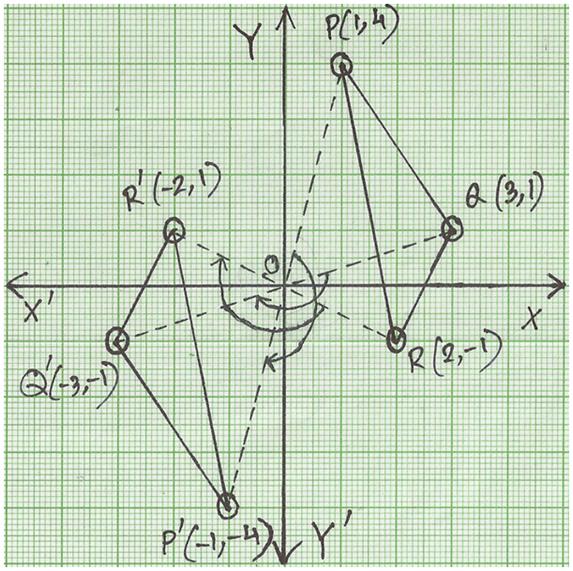

5. Draw a triangle PQR by joining the points P (1, 4), Q (3, 1), R (2, -1) on the graph paper. Now rotate the triangle formed about the origin through 180° in clockwise direction.

Solution:

Rotated through 180° about the Origin

We get triangle PQR by plotting the point P (1, 4), Q (3, 1), R (2, -1) on the graph paper when rotated through 180° about the origin. The new position of the point is:

P (1, 4) → P' (-1, -4)

Q (3, 1) → Q' (-3, -1)

R (2, -1) → R' (-2, 1)

Thus, the new position of ∆PQR is ∆P’Q’R’.
