Construction of Triangles

Here we will learn to construct different types of triangles.

Construction of Equilateral Triangle:

We can draw an equilateral triangle of the given length as given below.

Step I: First, we draw a base line segment BC of the given length.

Base Line Segment BC


Step II: We place pointed end of the compass on the end point B of line segment and cut an arc with the given length as shown in figure.

Cut an Arc


Step III: We place the same end of the compass on the end point C of line segment and cut an arc with the same length in such a way that arcs intersect at a fixed point, say A.

Arcs Intersects


Step IV: Now we join this fixed point A to the end points B and C of the line segments to form the required equilateral triangle.

Construction of Equilateral Triangle

∆ ABC has all the sides equal (AB = BC = AC).

Construction of Isosceles Triangle:

We follow the following steps to draw an isosceles triangle.

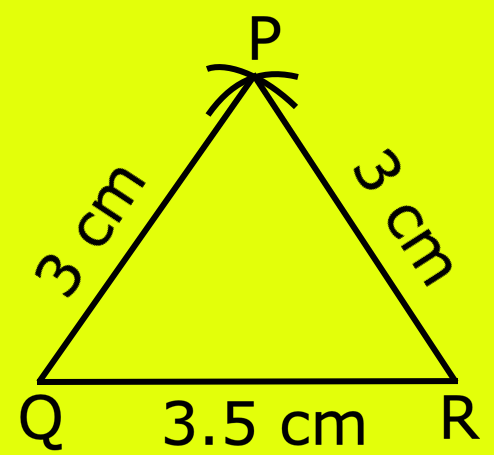

Construction of Isosceles Triangle

Step I: First, we draw a base line segment QR of the given length.

Step II: We cut two arcs with the given length from the points Q and R, so that they cut at a fixed point P.

Step III: We join points P and Q and points P and R to form the required isosceles triangle. ∆PQR has opposite sides equal. (PQ = PR)

Construction of Scalene Triangle:

We follow the following steps to draw a triangle.

Construction of Scalene Triangle

Step I: We draw a base line segment NP of the given length.

Step II: We cut two arcs with given lengths from the points N and P, so that they intersect at point M.

Step III: Now, we join points M and N and points M and P to form the required scalene triangle. ∆ MNP has all the sides of different lengths.

A. When two sides and one angle formed by these sides are given.

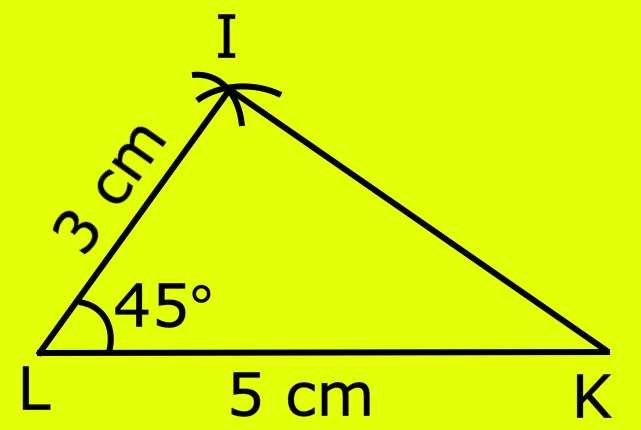

Suppose, we have to construct a triangle TLK having the base side LK = 5 cm, side TL = 3 cm and ∠L = 45°.

Construction of Scalene Triangle

Step I: First, we draw the base side LK of 5 cm.

Step II: Now, we form an angle L of 45° at the point L on the side LK with the help of a protractor.

Step III: Now we cut off the line segment LT of the length 3 cm from the side.

Step IV: We join points T and K to get the third side TK of the ∆ TLK.

So, ∆ TLK is the required angle.

B. When two angles and one side are given.

Suppose we have to construct a triangle XYZ having the base side YZ, 4.5 cm, angle Y, 40° and angle Z, 65°.

Construction of Scalene Triangle

Step I: First we draw the base side YZ of 4.5 cm.

Step II: Now we form an angle Y of 40° on point Y on YZ with the help of a protractor.

Step III: Similarly, we form an angle Z of 65° on point Z on YZ with the help of a protractor.

Step IV: The sides, other than the base side, intersect at a point X. We join points X and Y and X and Z to form the required ∆ XYZ.
