Drawing Parallel Lines with Set-Squares

To draw a line segment through a point T, parallel to line PQ. There are two set-squares in your geometry box.

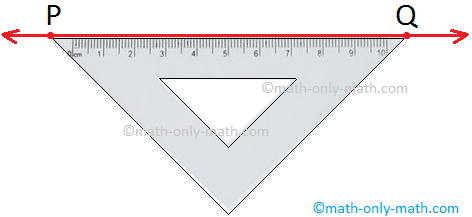

Take one of the set-square and place its edge along PQ as shown in the figure 1.

$One of the Set-Square$ Figure 1

Place the other set-square along the first set-square as shown in the figure 2.

$First Set-Square$ Figure 2

Now, slide the first set-square until its edge comes to pass through the given point T.

$Drawing Parallel Lines with Set-Squares$ Figure 3

Draw the line RS passing through the point T as shown in the figure 3.
